How Touchscreens work: The Science of Touchscreens

For science enthusiasts, it must have been a question on how touchscreens work in the daily tech devices. Touchscreens have redefined how we interact with technology, from scrolling social media to creating digital art. At the core of this revolution is a blend of physics, materials science, and electrical engineering. Most modern devices, including iPhones and iPads, use projected capacitive touchscreens (PCT), which rely on the electrical properties of the human body to detect touch.

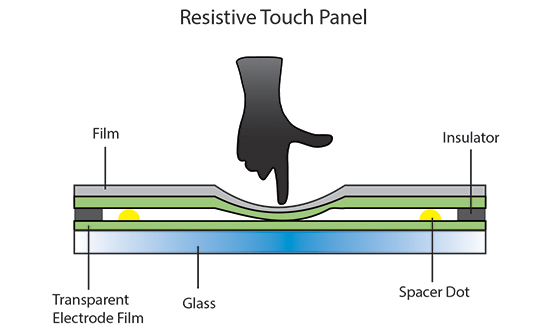

Unlike older resistive touchscreens, which required physical pressure to register input, capacitive screens are highly responsive, supporting multi-touch gestures and precise interactions. This technology has made devices more intuitive and opened up new possibilities for developers and creators.

How Capacitive Touchscreens Work: The Technical Breakdown

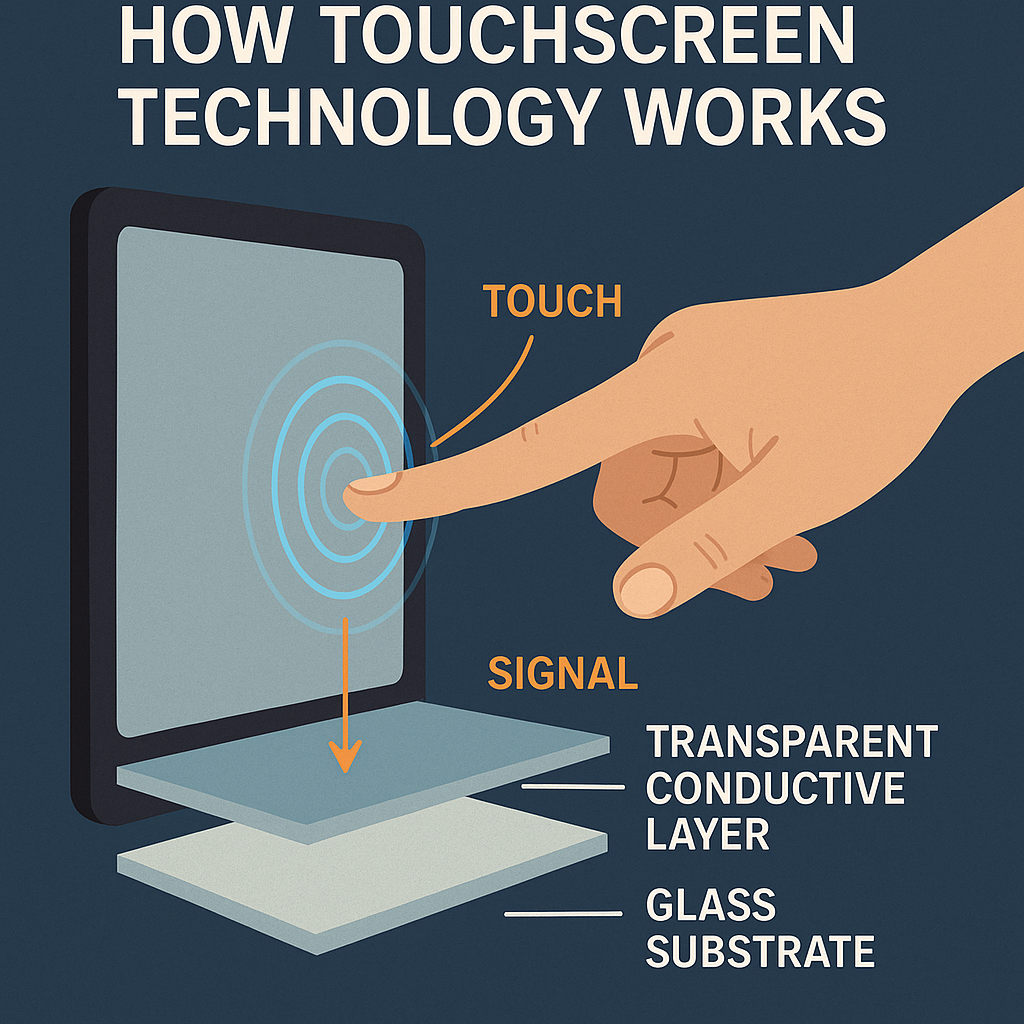

A capacitive touchscreen consists of a glass substrate coated with a transparent conductor, typically indium tin oxide (ITO). This coating forms a grid of electrodes arranged in rows and columns, creating an electrostatic field across the screen. The human body, being a conductor, carries a small electrical charge. When a finger touches the screen, it disrupts the electrostatic field, causing a measurable change in capacitance.

The touchscreen controller, a specialized microchip, continuously scans the electrode grid at high frequencies (often 100–200 kHz) to detect these capacitance changes. Advanced algorithms analyze the data to pinpoint the exact coordinates of the touch, with a typical accuracy of ±0.5 mm. For multi-touch, the system tracks multiple points simultaneously, enabling gestures like pinching, swiping, or rotating.

The electrode grid is typically composed of two layers: one for the X-axis and one for the Y-axis. Each intersection point acts as a capacitor, and the controller measures the mutual capacitance between electrodes. Modern screens use diamond-shaped electrode patterns to optimize sensitivity and reduce interference, ensuring smooth performance even with rapid gestures.

The Physics and Materials Science Behind Touchscreens

The functionality of capacitive touchscreens hinges on the principles of electrostatics. The electrostatic field is governed by Coulomb’s law, where the interaction between charges determines the capacitance change. The formula for capacitance, C = εA/d, where ε is the permittivity, A is the electrode area, and d is the distance between electrodes, underpins the design of the grid.

Materials like ITO are chosen for their high electrical conductivity and optical transparency (over 90% light transmission). However, ITO is brittle, so newer touchscreens experiment with alternatives like graphene or silver nanowires, which offer flexibility for foldable displays. Protective layers, such as chemically strengthened glass (e.g., Gorilla Glass), ensure durability while maintaining sensitivity.

To enhance performance, manufacturers incorporate anti-reflective coatings and oleophobic layers to reduce glare and smudges. These advancements, rooted in nanotechnology, ensure that touchscreens remain clear and responsive even under heavy use.

Why Capacitive Touchscreens Excel

Capacitive touchscreens dominate due to their superior responsiveness, durability, and compatibility with high-resolution displays. They can detect touches with a latency as low as 10 milliseconds, creating a seamless user experience. Unlike resistive screens, which degrade with repeated pressure, capacitive screens are robust, with lifespans exceeding 10 million touches.

Their ability to support 10-point multi-touch (tracking up to 10 fingers) makes them ideal for complex interactions in gaming, productivity apps, and creative software like Procreate. Additionally, capacitive screens integrate with in-cell or on-cell display technologies, where touch sensors are embedded in the LCD or OLED layers, reducing thickness and improving clarity.

Innovative Applications of Touchscreen Technology

Touchscreen technology isn’t just for consumer devices—it’s a playground for innovation. Engineers and creators leverage its precision and versatility for groundbreaking projects, including:

• Haptic Feedback Systems: Combine touchscreens with actuators to simulate tactile sensations, used in virtual reality or medical training simulators.
• Interactive Dashboards: Build touch-controlled interfaces for smart homes or vehicles, integrating with IoT devices via protocols like MQTT.
• Augmented Reality Interfaces: Develop AR apps that use multi-touch to manipulate 3D models, enhancing fields like architecture or education.
• Scientific Instruments: Create touch-based control panels for lab equipment, such as oscilloscopes or spectrometers, improving usability.

For example, a developer could use a Raspberry Pi 4 with a 7-inch capacitive touchscreen to build a portable weather station, displaying real-time data from sensors. By programming in Python with libraries like Kivy or PyQt, they can create a responsive interface that supports gestures and animations.

Building Your Own Touchscreen Projects

Starting a touchscreen project is easier than you think. Begin with a capacitive touchscreen module, such as the Waveshare 10.1-inch HDMI LCD, compatible with Raspberry Pi or Arduino. How touchscreens work for interaction is to use programming frameworks like TouchDesigner for visual interfaces or Processing for interactive art.

For advanced projects, explore capacitive sensor arrays to create custom touch surfaces. Libraries like CapSense for Arduino allow you to detect touch through non-traditional materials like wood or fabric. Online platforms like Hackster.io offer tutorials for projects like touch-controlled synthesizers or interactive museum exhibits.

The key is experimentation. With access to open-source tools and affordable hardware, anyone can harness touchscreen technology to build innovative solutions. So, weel this was the info on how touchscreens work. Will share more data.

Dive into the science of touchscreens and start creating with this transformative technology!
